Wireless Sensing

LORD, MicroStrain® manufactures wireless sensors that are used in a wide range of applications. MicroStrain® wireless sensor networks (WSN) enable simultaneous, high-speed sensing and data acquisition from multiple input sensors such as strain gage, accelerometer, load cell, etc.. wirelessly.

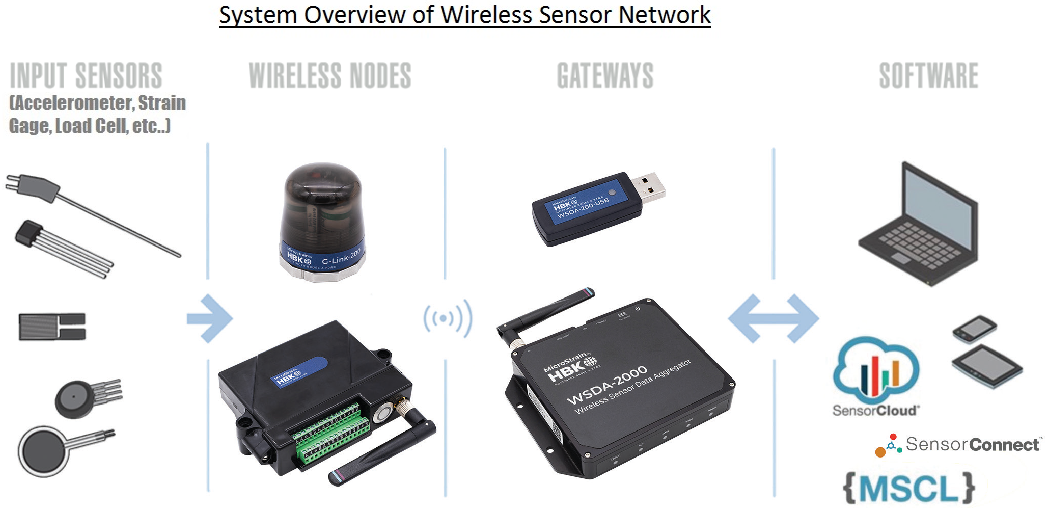

WSN layout

Our range of wireless sensing systems are ideal for both small scale applications requiring a few sensor nodes and large scale applications requiring hundreds of sensor nodes. Furthermore, low-power designs are coupled with internal batteries, and optional energy harvesters, for long-term application.

MicroStrain® wireless sensor nodes offer a streamlined solution for remote and embedded monitoring that eliminates the need to install or maintain wires.

Featured Products

Wireless Nodes for Vibration/Acceleration

15 May 2017

G-Link-200-40G

The G-Link-200-40G includes an on-board triaxial accelerometer and temperature sensor that allows high-resolution data acquisition with extremely low noise and drift.

  • No. of channels: 4 (Integrated 3-axis accelerometer, temperature)
  • Measurement Range: ±10 g, ±20 g or ±40 g – Configurable
  • Max. sampling rate: 4096 Hz
  • Resolution: 20-bits
  • Data storage: 16 MB

Detail

G-Link-200-8G

The G-Link-200-8G includes an on-board triaxial accelerometer and temperature sensor that allows high-resolution data acquisition with extremely low noise and drift.

  • No. of channels: 4 (Integrated 3-axis accelerometer, temperature)
  • Measurement Range: ±2 g, ±4 g or ±8 g – Configurable
  • Max. sampling rate: 4096 Hz
  • Resolution: 20-bits
  • Data storage: 16 MB

DetailVideo

V-Link® -200

Analog Input sensor node with high sample rates and datalogging capability.

  • No. of channels: 8
  • Max. sampling rate: 8 kHz*
  • Resolution: 18-bits
  • Data storage: 8 MB

*Divide maximum rate by number of active channels

Detail

SG-Link® -LXRS®

Analog Input sensor node with high sample rates and datalogging capability.

  • No. of channels: 2
  • Max. sampling rate: 4,096 kHz
  • Resolution: 12-bits
  • Data storage: 2 MB

Detail

G-Link2 -LXRS®

Ruggedized IP67 node with high-speed sampling, datalogging capability and optional integrated three-axis accelerometer or an external single-axis accelerometer.

  • No. of channels: 1 (for external single-axis accelerometer) or; 3 (integrated 3-axis accelerometer)
  • Max. sampling rate: 10 kHz
  • Resolution: 16-bits
  • Data storage: 4 MB

Detail

IEPE-Link -LXRS®

Specialized high-speed node designed for synchronized, periodic burst sampling of input piezoelectric (IEPE) accelerometer.

  • No. of channels: External IEPE accelerometer, 1 channel
  • Max. sampling rate: Periodic burst sampling up to 104 kHz
  • Resolution: 24-bits

Detail

SG-Link® -RGD -LXRS®

Ruggedized Analog Input sensor node with integrated triaxial accelerometer.

  • No. of channels: 4 differential analog inputs, 3 (integrated triaxial ±16g accelerometer) & 1 integrated temperature sensor
  • Max. sampling rate: 4,096 Hz
  • Resolution: 16-bits for 4 analog inputs, 13-bits for integrated accelerometer
  • Data storage: 2 MB

Detail

SG-Link®-OEM-LXRS®

Analog Input sensor node high sample rates and datalogging capability. Ready for OEM integration.

  • No. of channels: 2
  • Max. sampling rate: 4,096 Hz
  • Resolution: 12-bits
  • Data storage: 2 MB

Detail

Wireless Nodes for Displacement

V-Link® -200

Analog Input sensor node with high sample rates and datalogging capability.

  • No. of channels: 8
  • Max. sampling rate: 8 kHz*
  • Resolution: 18-bits
  • Data storage: 8 MB

*Divide maximum rate by number of active channels

Detail

SG-Link® -LXRS®

Analog Input sensor node with high sample rates and datalogging capability.

  • No. of channels: 2
  • Max. sampling rate: 4,096 kHz
  • Resolution: 12-bits
  • Data storage: 2 MB

Detail

SG-Link® -RGD -LXRS®

Ruggedized Analog Input sensor node with integrated triaxial accelerometer.

  • No. of channels: 4 differential analog inputs, 3 (integrated triaxial ±16g accelerometer) & 1 integrated temperature sensor
  • Max. sampling rate: 4,096 Hz
  • Resolution: 16-bits for 4 analog inputs, 13-bits for integrated accelerometer
  • Data storage: 2 MB

Detail

SG-Link®-OEM-LXRS®

Analog Input sensor node high sample rates and datalogging capability. Ready for OEM integration.

  • No. of channels: 2
  • Max. sampling rate: 4,096 Hz
  • Resolution: 12-bits
  • Data storage: 2 MB

Detail

DVRT-Link-LXRS®

High-speed, wireless DVRT displacement sensor signal conditioner.

  • No. of channels: DVRT displacement sensor input, 1 channel
  • Max. sampling rate: 4,096 Hz
  • Resolution: 12-bits
  • Data storage: 2 MB

Detail

Wireless Nodes for Humidity

V-Link® -200

Analog Input sensor node with high sample rates and datalogging capability.

  • No. of channels: 8
  • Max. sampling rate: 8 kHz*
  • Resolution: 18-bits
  • Data storage: 8 MB

*Divide maximum rate by number of active channels

Detail

SG-Link® -LXRS®

Analog Input sensor node with high sample rates and datalogging capability.

  • No. of channels: 2
  • Max. sampling rate: 4,096 kHz
  • Resolution: 12-bits
  • Data storage: 2 MB

Detail

SG-Link® -RGD -LXRS®

Ruggedized Analog Input sensor node with integrated triaxial accelerometer.

  • No. of channels: 4 differential analog inputs, 3 (integrated triaxial ±16g accelerometer) & 1 integrated temperature sensor
  • Max. sampling rate: 4,096 Hz
  • Resolution: 16-bits for 4 analog inputs, 13-bits for integrated accelerometer
  • Data storage: 2 MB

Detail

SG-Link®-OEM-LXRS®

Analog Input sensor node high sample rates and datalogging capability. Ready for OEM integration.

  • No. of channels: 2
  • Max. sampling rate: 4,096 Hz
  • Resolution: 12-bits
  • Data storage: 2 MB

Detail

TC-Link® -6CH -LXRS®

Specialized node designed for data acquisition from up to six standard thermocouples and an optional relative humidity sensor.

  • No. of channels: 6 channels thermocouple inputs ;1 embedded cold junction compensation (CJC) temperature sensor and ;1 optional integrated relative humidity sensor.
  • Max. sampling rate: 8 Hz
  • Resolution: 24 bits for 6 thermocouple inputs
  • Data storage: 2 MB

Detail

Wireless Nodes for Inclination

V-Link® -200

Analog Input sensor node with high sample rates and datalogging capability.

  • No. of channels: 8
  • Max. sampling rate: 8 kHz*
  • Resolution: 18-bits
  • Data storage: 8 MB

*Divide maximum rate by number of active channels

Detail

SG-Link® -LXRS®

Analog Input sensor node with high sample rates and datalogging capability.

  • No. of channels: 2
  • Max. sampling rate: 4,096 kHz
  • Resolution: 12-bits
  • Data storage: 2 MB

Detail

SG-Link® -RGD -LXRS®

Ruggedized Analog Input sensor node with integrated triaxial accelerometer.

  • No. of channels: 4 differential analog inputs, 3 (integrated triaxial ±16g accelerometer) & 1 integrated temperature sensor
  • Max. sampling rate: 4,096 Hz
  • Resolution: 16-bits for 4 analog inputs, 13-bits for integrated accelerometer
  • Data storage: 2 MB

Detail

SG-Link®-OEM-LXRS®

Analog Input sensor node high sample rates and datalogging capability. Ready for OEM integration.

  • No. of channels: 2
  • Max. sampling rate: 4,096 Hz
  • Resolution: 12-bits
  • Data storage: 2 MB

Detail

Wireless Nodes for Load

V-Link® -200

Analog Input sensor node with high sample rates and datalogging capability.

  • No. of channels: 8
  • Max. sampling rate: 8 kHz*
  • Resolution: 18-bits
  • Data storage: 8 MB

*Divide maximum rate by number of active channels

Detail

SG-Link® -LXRS®

Analog Input sensor node with high sample rates and datalogging capability.

  • No. of channels: 2
  • Max. sampling rate: 4,096 kHz
  • Resolution: 12-bits
  • Data storage: 2 MB

Detail

SG-Link® -RGD -LXRS®

Ruggedized Analog Input sensor node with integrated triaxial accelerometer.

  • No. of channels: 4 differential analog inputs, 3 (integrated triaxial ±16g accelerometer) & 1 integrated temperature sensor
  • Max. sampling rate: 4,096 Hz
  • Resolution: 16-bits for 4 analog inputs, 13-bits for integrated accelerometer
  • Data storage: 2 MB

Detail

SG-Link®-OEM-LXRS®

Analog Input sensor node high sample rates and datalogging capability. Ready for OEM integration.

  • No. of channels: 2
  • Max. sampling rate: 4,096 Hz
  • Resolution: 12-bits
  • Data storage: 2 MB

Detail

Wireless Nodes for Pressure

V-Link® -200

Analog Input sensor node with high sample rates and datalogging capability.

  • No. of channels: 8
  • Max. sampling rate: 8 kHz*
  • Resolution: 18-bits
  • Data storage: 8 MB

*Divide maximum rate by number of active channels

Detail

SG-Link® -LXRS®

Analog Input sensor node with high sample rates and datalogging capability.

  • No. of channels: 2
  • Max. sampling rate: 4,096 kHz
  • Resolution: 12-bits
  • Data storage: 2 MB

Detail

SG-Link® -RGD -LXRS®

Ruggedized Analog Input sensor node with integrated triaxial accelerometer.

  • No. of channels: 4 differential analog inputs, 3 (integrated triaxial ±16g accelerometer) & 1 integrated temperature sensor
  • Max. sampling rate: 4,096 Hz
  • Resolution: 16-bits for 4 analog inputs, 13-bits for integrated accelerometer
  • Data storage: 2 MB

Detail

SG-Link®-OEM-LXRS®

Analog Input sensor node high sample rates and datalogging capability. Ready for OEM integration.

  • No. of channels: 2
  • Max. sampling rate: 4,096 Hz
  • Resolution: 12-bits
  • Data storage: 2 MB

Detail

Wireless Nodes for Strain

V-Link® -200

Analog Input sensor node with high sample rates and datalogging capability.

  • No. of channels: 8
  • Max. sampling rate: 8 kHz*
  • Resolution: 18-bits
  • Data storage: 8 MB

*Divide maximum rate by number of active channels

Detail

SG-Link® -LXRS®

Analog Input sensor node with high sample rates and datalogging capability.

  • No. of channels: 2
  • Max. sampling rate: 4,096 kHz
  • Resolution: 12-bits
  • Data storage: 2 MB

Detail

SG-Link® -RGD -LXRS®

Ruggedized Analog Input sensor node with integrated triaxial accelerometer.

  • No. of channels: 4 differential analog inputs, 3 (integrated triaxial ±16g accelerometer) & 1 integrated temperature sensor
  • Max. sampling rate: 4,096 Hz
  • Resolution: 16-bits for 4 analog inputs, 13-bits for integrated accelerometer
  • Data storage: 2 MB

Detail

SG-Link®-OEM-LXRS®

Analog Input sensor node high sample rates and datalogging capability. Ready for OEM integration.

  • No. of channels: 2
  • Max. sampling rate: 4,096 Hz
  • Resolution: 12-bits
  • Data storage: 2 MB

Detail

Wireless Nodes for Temperature

V-Link® -200

Analog Input sensor node with high sample rates and datalogging capability.

  • No. of channels: 8
  • Max. sampling rate: 8 kHz*
  • Resolution: 18-bits
  • Data storage: 8 MB

*Divide maximum rate by number of active channels

Detail

SG-Link® -LXRS®

Analog Input sensor node with high sample rates and datalogging capability.

  • No. of channels: 2
  • Max. sampling rate: 4,096 kHz
  • Resolution: 12-bits
  • Data storage: 2 MB

Detail

SG-Link® -RGD -LXRS®

Ruggedized Analog Input sensor node with integrated triaxial accelerometer.

  • No. of channels: 4 differential analog inputs, 3 (integrated triaxial ±16g accelerometer) & 1 integrated temperature sensor
  • Max. sampling rate: 4,096 Hz
  • Resolution: 16-bits for 4 analog inputs, 13-bits for integrated accelerometer
  • Data storage: 2 MB

Detail

SG-Link®-OEM-LXRS®

Analog Input sensor node high sample rates and datalogging capability. Ready for OEM integration.

  • No. of channels: 2
  • Max. sampling rate: 4,096 Hz
  • Resolution: 12-bits
  • Data storage: 2 MB

Detail

TC-Link® -6CH -LXRS®

Specialized node designed for data acquisition from up to six standard thermocouples and an optional relative humidity sensor.

  • No. of channels: 6 channels thermocouple inputs ;1 embedded cold junction compensation (CJC) temperature sensor and ;1 optional integrated relative humidity sensor.
  • Max. sampling rate: 8 Hz
  • Resolution: 24 bits for 6 thermocouple inputs
  • Data storage: 2 MB

Detail

TC-Link®-1CH -LXRS

Small, specialized node designed for data acquisition from standard thermocouples.

  • No. of channels: 1 channel thermocouple input and 1 embedded cold junction compensation (CJC) temperature sensor
  • Max. sampling rate: 64 Hz
  • Resolution: 24 bits for 1 thermocouple input
  • Data storage: 2 MB

Detail

RTD-Link -LXRS®

Specialized node designed for data acquisition from standard resistance temperature detectors.

  • No. of channels: Resistance Temperature Detector (RTD) sensor input, 1 channel
  • Max. sampling rate: 64 Hz
  • Resolution: 24-bits for RTD sensor input
  • Data storage: 2 MB

Detail

Wireless Nodes for Torque

V-Link® -200

Analog Input sensor node with high sample rates and datalogging capability.

  • No. of channels: 8
  • Max. sampling rate: 8 kHz*
  • Resolution: 18-bits
  • Data storage: 8 MB

*Divide maximum rate by number of active channels

Detail

SG-Link® -LXRS®

Analog Input sensor node with high sample rates and datalogging capability.

  • No. of channels: 2
  • Max. sampling rate: 4,096 kHz
  • Resolution: 12-bits
  • Data storage: 2 MB

Detail

Torque-Link -LXRS®

Specialized Analog Input sensor node with datalogging capability designed to fit over rotating shafts for wireless strain and torque measurements.

  • No. of channels: 1 or 2 (for strain gage input)
  • Max. sampling rate: 4,096 Hz
  • Resolution: 12-bits
  • Data storage: 2 MB

Detail

SG-Link® -RGD -LXRS®

Ruggedized Analog Input sensor node with integrated triaxial accelerometer.

  • No. of channels: 4 differential analog inputs, 3 (integrated triaxial ±16g accelerometer) & 1 integrated temperature sensor
  • Max. sampling rate: 4,096 Hz
  • Resolution: 16-bits for 4 analog inputs, 13-bits for integrated accelerometer
  • Data storage: 2 MB

Detail

SG-Link®-OEM-LXRS®

Analog Input sensor node high sample rates and datalogging capability. Ready for OEM integration.

  • No. of channels: 2
  • Max. sampling rate: 4,096 Hz
  • Resolution: 12-bits
  • Data storage: 2 MB

Detail

Wireless Gateways

MicroStrain® wireless gateways (Wireless Sensor Data Aggregator WSDA series) coordinate and schedule communication between remote wireless sensor nodes and a variety of user-selectable end systems including third party controls, stand alone dataloggers, local computers and networks, and SensorCloud-enabled remote health monitoring and alerting systems.

USB Interface / Analog Outputs

3 Aug 2017

WSDA®-200-USB

USB gateway for configuration and data collection.

Detail

WSDA® -Base -104 -LXRS®

USB data gateway for easy, reliable sensor data acquisition.

Detail

WSDA® -Base -101 -LXRS®

USB data gateway with eight analog outputs replicating any connected sensor.

Detail

RS232 Interface

WSDA® -Base -102 -LXRS®

RS232 data gateway for easy, reliable sensor data acquisition.

Detail

Ethernet / CLOUD-BASED

WSDA® -1500 -LXRS®

Network-ready gateway for high-speed, sophisticated data aggregation, with J1939 CAN and Ethernet interfaces.

Detail

Software for Wireless Sensor Network

MicroStrain® wireless sensor network (WSN) software allows configuration of sensor nodes, collect and analyze measurement data in real-time wirelessly.

Measurement data of the wireless sensor nodes can also be uploaded to SensorCloudTM account via WSDA®-1500 Ethernet gateway, for viewing and analyzing the data from anywhere in the world.

Desktop PC Software

SensorConnectTM

SensorConnect is MicroStrain® main PC software for sensor configuration and data collection.



Configure nodes, start networks, and collect and analyze data in real-time from both our Wireless and Inertial products.



Using their intelligent data collection and graphing algorithms, you are able to visualize massive amounts of data instantly without any delay. Zoom in on points of interest just as fast.

Detail

SensorCloud Web-based Monitoring & Data Analysis

SensorCloudTM

SensorCloud allows you to upload unlimited amounts of data to view and analyze from anywhere in the world.



Analyze your data with MathEngine, which allows you to run algorithms on your data. Take it a step further and write your own Python scripts, all in the cloud.



Plug and play support with the Wireless System Ethernet gateways. Wireless and Inertial data is automatically uploaded directly to your SensorCloud account.



Set email and text alerts on your data to be notified when events occur.

Detail

OEM/Customize

We provide you:

  • anything from a minor tweak to an existing product to a complete custom design
  • aggregate 1,000 years of sensing expertise
  • aggressive volume pricing of 1/2 to 1/3 of the list price
  • solutions engineered under AS9100 and ISO9001 standards
  • vast application experience
  • highly-optimized supply chain

OEM Options

OEM WIRELESS SENSOR NETWORKS

Wireless Simplicity, Hardwired Reliability.™

Add our custom wireless technology, and open the door to data and measurements unavailable on hardwired systems. Our wireless custom and OEM capabilities include embedded systems, energy harvesting and white label solutions for your company. Our custom nodes can include custom-embedded algorithms tailored for your application, and they are each compatible with SensorCloud, our secure, online, cloud-based data aggregation and analysis software. While our nodes are designed to run on our proprietary LXRS® (Lossless Extended Range Synchronized) protocol, our engineers can also develop wireless sensing systems that use other protocols, including 6LoWPAN/Thread, Zigbee and Bluetooth Smart. Proven field applications range from structural health monitoring (SHM) on heavy-duty construction equipment to analysis of helicopter swashplate vibration and temperature. Our custom-designed solutions include the ideal packaging, power conservation and data analysis technology for virtually any application.

Detail
