New Featured Products
SPEKTRA Vibration Exciter and Mobile Calibrator
SE-20
The SE-20 offers a very wide frequency range, low transverse motion, wide temperature range and high payload. In addition to top quality components, the focus is on a versatile user field and easy implementation in existing test environments.
- Frequency Range: 3 Hz to 20 kHz (with optional internal reference standard)
- Max. Acceleration (sine-peak): 600 m/s2
- Max. Force (sine-peak): 95 N
- Max. Displacement (peak-peak): 10 mm
CV-05 Mobile Calibrator
The CV-05 is a mobile, battery-powered calibrator e.g. for on-site testing of human vibration measuring devices in accordance with ISO 8041. Highlights are the user-friendly interface, a high payload up to 300 g and the traceable DAkkS calibration certificate (corresponds to ILAC-MRA).
- Frequency: 79.58 Hz / 159.15 Hz
- Acceleration (m/s² RMS): 1; 2; 3; 4; 5; 6; 7; 8; 9; 10
- Displacement (μm RMS):
- 4; 8; 12; 16; 20; 24; 28; 32; 36; 40 (@ 79.58 Hz)
- 1; 2; 3; 4; 5; 6; 7; 8; 9; 10 (@ 159.2 Hz)
- Max. Payload: 300 g (0.66 lbs) resp. 200 g (0.44 lbs) – depending on frequency
KYOWA Corner Strain Gages
KFGS-NE 120 Ω Uniaxial (Corner Strain Gages)
Measure as close as possible to stress concentration area.
- The length from the tip of the strain gage to the sensor part is short, so it can be attached as close to the end as possible.
- Grid Length: 1mm , 2mm and 3mm
- Linear Expansion Coefficients: 11, 16, 23, 27
KYOWA Measurement System (Traffic System (Highway))
Handy Scale Portable Weighing Systems, HS-A Series
This is a vehicle weight scale that can measure weight simply by setting the detection part on the road surface and riding the vehicle onto it.
* The display language of the indicator is Japanese. (English will be available by the end of the year with a software update)
- Rated Capacity: 4,000kg, 8,000kg , 12,000kg and 20,000 kg
- Unit to display: kg (%)
- Power Supply: 10 to 30 VDC, 30 W MAX, 100 to 240 V AC * When using the accessory AC adapter for charging.
KYOWA Measuring Instruments
PCD-400B Series Sensor Interface
The PCD-400 Series are carrier-wave measuring instruments for measuring strain gages, strain-gage transducers and voltage via an USB interface. (PCD-400B: For strain measurement, PCD-430B: For strain and voltage measurement)
- No. of input channels: 4 channels / per unit
- Synchronous Operation: Maximum 4 units for 16 channels
- Sampling frequency: Maximum 10 kHz
- Compatible Gage Resistance: ¼ bridge 2-wire, 3-wire system: 120 Ω , ½ bridge, Full bridge: 120Ω to 1,000Ω
- A/D converter resolution: 24-bits
- Different input adapters available for sensor connection.
- *Note that the PCD-400B series cannot connect with the PCD-400A/430A.
UCAM-80A Data Logger
KYOWA long-selling static strain measuring instrument now features an even better design and usability.
- Includes a touch panel
- Highly accurate, and supports a range of measurements up to large strain
- Improved cable management
- Built-in printer
- Supports up to 30 channels with a single data logger, and up to 1,000 channels when connected to a scanner.
- It can also be used with UCAM-60 Series scanning units and scanners.
2-channel Instrumentation Conditioner, WGC-220 Series
This instrumentation conditioner employs a touch panel and is capable of two-channel measurement and high-speed calculations with one unit. (WGC-220A: For press and general use, WGC-221A: For steel)
- Measurement Channels: Strain gage transducers, 2 channels
- Sampling speed: 4000 times/second
- Equipped with inter-channel sum calculation processing function
- Intuitive interface with touch panel
KYOWA Acceleration Transducer
ASKR-A-1K-ID
Damped Acceleration Transducer for Crash Test.
Smallest damped type acceleration transducer (compared to other products in KYOWA lineup). Since it is a damping type, it is an acceleration transducer that is less affected by resonance due to crash acceleration.
- Rated Capacity: ±9807 m/s²
- Dimensions: 7 × 4.6 × 4.6 mm
- Rated Output: 3 mV/V or more
- Frequency Response (at 23ºC): DC to 1 kHz (Sensitivity deviation ±3%) , 1 kHz to 4 kHz (Sensitivity deviation ±10%)
Inertial GNSS/INS

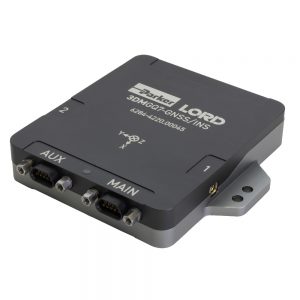

3DMGQ7-GNSS/INS
Tactical Grade Dual Antenna, Multi-Band, RTK, Industrial Package. USB & RS232 communication interface.
Sensor Outputs:
- 3-axis Acceleration (±8g range)
- 3-axis Angular rate (300°/sec range)
- Dual GNSS antenna heading with 0.2° heading accuracy that is immune to magnetic disturbances
- Tactical grade IMU with <2°/hr bias instability provides exceptional position accuracy during GNSS outages
3DM-RTK
Network Interface Modem, Industrial Package.
Specifications:
- Provides real time Kinematic (RTK) correction data to be utilized by the 3DMGQ7-GNSS/INS
- Supports industry-standard NMEA and RTCM 3.1 protocols
- Micro DB-9 Connector
- Combine 3DM-RTK with SensorCloud RTK network service and 3DMGQ7-GNSS/INS for a complete navigation system.
Microstrain 3DM-GV7 Series: Tactical Grade Ruggedized IMU/AHRS, IMU/VRU, and INS
3DM-GV7-INS
Tactical Grade Ruggedized Inertial Navigation System. USB & RS232 communication interface.
Sensor Outputs:
- 3-axis Acceleration (±4, 8g and 16g range)
- 3-axis Angular rate (±250°, ±500°, ±1000°/sec range)
- 3-axis Magnetic field (±8 Gauss range)
- AHRS outputs (Attitude and Heading, Pitch and Roll, Inclination, Acceleration and Angular Rate)
- External position and velocity inputs
- Defence-ready: accepts encrypted GNSS receivers
3DM-GV7-AHRS
Tactical Grade Ruggedized IMU/AHRS. USB & RS232 communication interface.
Sensor Outputs:
- 3-axis Acceleration (±4g, 8g and 16g range)
- 3-axis Angular rate (±250°, ±500°, ±1000°/sec range)
- 3-axis Magnetic field (±8 Gauss range)
- AR outputs (Pitch and Roll, Inclination, Acceleration and Angular Rate)
- Heading
3DM-GV7-AR
Tactical Grade Ruggedized IMU/VRU.USB & RS232 communication interface.
Sensor Outputs:
- 3-axis Acceleration (±4g, 8g and 16g range)
- 3-axis Angular rate (±250°, ±500°, ±1000°/sec range)
- IMU outputs (Acceleration and Angular Rate)
- Pitch and Roll
- Inclination
Microstrain 3DM-CV7-INS: Tactical Grade Embeddable INS
3DM-CV7-INS
Tactical Grade Embeddable Inertial Navigation System. USB & UART (TTL) Communication Interface.
Sensor Outputs:
- 3-axis Acceleration (±4, 8g and 16g range)
- 3-axis Angular rate (±250°, ±500°, ±1000°/sec range)
- 3-axis Magnetic field (±8 Gauss range)
- AHRS outputs (Attitude and Heading, Pitch and Roll, Inclination, Acceleration and Angular Rate)
- External position and velocity inputs
- Defence-ready: accepts encrypted GNSS receivers
BSWA Preamplifier & Microphone
BSWA Preamplifier, MA412AS
MA412AS is a dedicated DC power supply preamplifier developed by BSWA, which is suitable for MP series 1/4-inch pre-polarized microphones.
The main function of the preamplifier is impedance change, since the output impedance of the microphone is above GΩ, it cannot be directly connected to the common data acquisition equipment. The high input impedance and low output impedance of the preamplifier can reduce the output impedance of the microphone to less than 100 Ω.
MA412AS does not provide polarization voltage, so it is only applicable to pre-polarized microphones. It powered by single or dual DC power supply, with rugged stainless steel housing and mounting lugs for easy attachment to other equipment, making it suitable for harsh applications.
MA412AS is designed for direct cable output for user-definable cable length and output connector.
- Fit to 1/4-inch prepolarized microphone
- Powered by single or dual power supply
- Frequency response: 4 Hz ~ 50 kHz (±0.2 dB)
- Attenuation: 0.35 dB (typ.)
- Separated power supply and signal lines
- Rugged housing with fixed lugs
- Direct cable output, user-defined output interface
- Suitable for harsh operating environment

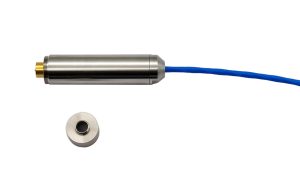

BSWA 1/2-inch Preamplifier, MA221ADY
MA221ADY is 1/2-inch single power supply preamplifier developed by BSWA, which is suitable for MP series 1/2-inch pre-polarized microphones, and can also be used with a dedicated adapter for 1/4-inch pre-polarized microphones.
The main function of the preamplifier is impedance change, since the output impedance of the microphone is above GΩ, it cannot be directly connected to the common data acquisition equipment. The high input impedance and low output impedance of the preamplifier can reduce the output impedance of the microphone to less than 100 Ω.
MA221ADY does not provide polarization voltage, so it is only applicable to pre-polarized microphones. It powered by single power supply with built-in low-pass filter, suitable for applications focused on low-frequency acoustic measurement (the cut-off frequency of built-in low-pass filter can be modified to meet the requirement of user application). The output signal has a bias voltage of +2.5 V, suitable for analog-to-digital converter which also powered by a single power supply.
MA221ADY is designed as direct cable output with 1 m length of supplied cable. Users can customize the wire length and output connector.
- Fit to 1/2-inch prepolarized microphone
- Powered by single power supply
- Built-in 8th order low-pass filter
- Frequency response: 2.5 Hz ~ 12.5 kHz (±0.5 dB)
- Attenuation: 0.3 dB (typ.)
- Wide operating temperature range: -40 °C ~ 100 °C
- Optional additional signal attenuation to adapt to data acquisition devices
- Direct cable output with user-defined output connector
- Dedicated preamplifier with built-in filter
BSWA 1/4-inch Pressure-field Microphone, MPA436B
MPA436B is the new 1/4-inch free-field microphone developed by BSWA and suitable for measurement in free-field and semi free-field without reflection. It is prepolarized microphone without external polarization voltage, and equipped with built-in ICCP power supply preamplifier (optional TEDS).
MPA436B is front-vent and can measure the sound pressure level up to 140 dB in the frequency range of 10 Hz ~ 20 kHz. Each MPA436B passed a high sound pressure test before leaving the factory to verify its total distortion ≤ 3% when the rated maximum sound pressure level is reached.
- 1/4-inch free-field microphone
- Sensitivity (@250 Hz): 11.2 mV/Pa (-39 dB re 1V/Pa)
- Frequency response: 10 Hz ~ 20 kHz (±3 dB)
- Dynamic range: 29 dBA ~ 140 dB
- Polarization Voltage: 0V (Prepolarized)
- Pressure equalization: front-vented
- Optional phase-matching
- Built-in preamplifier with ICCP power supply
- Optional TEDS (IEEE.1451.4)
