Shock / Impact Sensing

We provide a range of shock/impact sensing instruments for a wide range of applications :

Applications:

  • Drop testing of electronic appliances
  • Drop testing of electronic devices. E.g. digital camera, mobile phones and tablet PCs
  • Drop and impact testing of lithium-ion batteries
  • Pyrotechnic testing
  • Shock testing
  • Impact & Event Monitoring

Featured Products

Wireless Accelerometer Nodes for Shock

15 May 2017

G-Link®-200

Wireless 3-axis accelerometer with rugged, weatherproof enclosure. Fully calibrated and low noise. Ideal for vibration, impact, and tilt.

  • No. of channels: 4 (Integrated 3-axis accelerometer, temperature)
  • Measurement Range:

    G-Link-200-8G: ±2 g, ±4 g or ±8 g – Configurable

    G-Link-200-40G: ±10 g, ±20 g or ±40 g – Configurable

  • Max. sampling rate: 4096 Hz
  • Resolution: 20-bits
  • Data storage: 16 MB

DetailVideo

15 May 2017

G-Link®-200-R

Wireless 3-axis accelerometer with rugged, weatherproof enclosure. Fully calibrated and low noise. Ideal for vibration, impact, and tilt.

ASTM F2137 Compliant. Specifically designed to monitor the dynamic characteristics of amusement rides and roller coasters.

  • No. of channels: 4 (Integrated 3-axis accelerometer, temperature)
  • Measurement Range: ±20 g
  • Max. sampling rate: 1024 Hz
  • Resolution: 20-bits
  • Data storage: 16 MB

Detail

21 March 2018

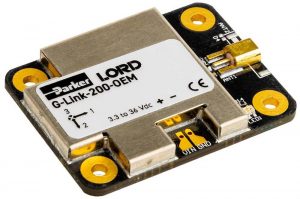

G-Link®-200-OEM

Wireless 3-axis accelerometer for OEM integration. Factory calibrated and low noise. Ideal for vibration, impact, and tilt applications.

  • No. of channels: 4 (Integrated 3-axis accelerometer, temperature)
  • Measurement Range:

    G-Link-200-OEM-8G: ±2 g, ±4 g or ±8 g – Configurable

    G-Link-200-OEM-40G: ±10 g, ±20 g or ±40 g – Configurable

  • Max. sampling rate: 4096 Hz
  • Resolution: 20-bits
  • Data storage: 16 MB

Detail

Acceleration Transducer

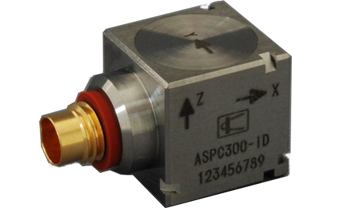

Piezoelectric Acceleration Transducer (Built-in Amplifier), ASPC-A

The ASPC-A is a piezoelectric acceleration transducer with a built-in amplifier for measuring high range from slight to large acceleration in high sensitivity.

  • Applicable Acceleration: ±400 to ±3600 m/s2
  • Dimensions:  14.2 x 14.2 x 23.7 mm
  • Voltage Sensitivity: 1.0 to 10 mV per m/s2 ±10%
  • Power Supply: 21 to 24 VDC, 0.5 to 10 mA

Detail

Small-sized High Frequency Response Acceleration Transducer, ASH-A

The ASH-A is an oil damping type small-sized acceleration transducer that can response high frequency.

  • Rated Capacity:  ±980.7 to ±9807 m/s2
  • Dimensions:  15.2 x 15.5 x 14 mm
  • Rated Output: 0.5 mV/V ± 20%
  • Frequency Response: DC to (2 to 7) kHz

Detail

Load Cell

Small-sized Compression Load Cell, LMC-A

The LMC-A is a compact & lightweight load cell for measuring compressive loads.

  • Rated Capacity: 5 kN to 50 kN
  • Diameter: 12±0.1mm (5, 10 kN), 16±0.1mm (20 kN), 22±0.2mm (50 kN)
  • Nonlinearity: Within ±0.5% RO for 5 kN to 10 kN, within ±1% RO for 20 kN to 50 kN

Detail
