PCB Strain Testing

KYOWATM offers Printed Circuit Assembly (PCA) Stress Measurement Set, PCAS-1000B which include software and sensor interface (data logger), specialized for stress measurements described in IPC/JEDEC-9704A*. It will help beginners to measure PCB (Printed Circuit Board) stress easily.

* The method of evaluating PCBs with strain gages is provided by IPC/JEDEC-9704A. The method can be effectively for various purposes including quality evaluation and trouble analysis.

Video of PCAS-1000A HERE

The PCA Stress Measurement Set comprises of the following components:

  • PCAS-100A Strain Measuring Software, in accordance with IPC/JEDEC-9704 standard;
  • PCD-400B Sensor Interface Unit, for Strain gages and Strain gage based sensors and;
  • UI-55A One-touch Type Input Adapter

Note: Strain gages, adhesive and PC not included.



Featured Products

Strain Gages for Printed Circuit Boards (PCB)

KFRS Series

Uni-axial Foil Strain Gage for Printed Boards

  • Grid length: 1 mm, 0.2 mm
  • Resistance: 120 Ω
  • Gage factor: Approx. 2.0
  • Available with pre-attached lead wire cable lengths (user to specify).

Detail

KFRS Series

Bi-axial (0°/90°) Foil Strain Gage for Printed Boards

  • Grid length: 0.2 mm
  • Resistance: 120 Ω
  • Gage factor: Approx. 2.0
  • Available with pre-attached lead wire cable lengths (user to specify).

Detail

KFRS Series

Tri-axial (0°/90°/45°) Foil Strain Gage for Printed Boards

  • Grid length: 0.2 mm
  • Resistance: 120 Ω
  • Gage factor: Approx. 2.0
  • Available with pre-attached lead wire cable lengths (user to specify).

Detail

Strain Gage Adhesives

  • For bonding strain gage to Printed boards
  • Suitable models:

    – CC-33A (operating temperature range: -196°C to 200°C)

    – CC-36 (operating temperature range: -30°C to 100°C)

    – PC-600 (operating temperature range: -196°C to 150°C)

Detail

Sensor Interface Unit

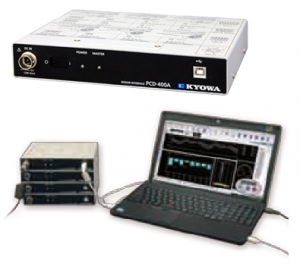

PCD-400B Series Sensor Interface

The PCD-400 Series are carrier-wave measuring instruments for measuring strain gages, strain-gage transducers and voltage via an USB interface. (PCD-400B: For strain measurement, PCD-430B: For strain and voltage measurement)

  • No. of input channels: 4 channels / per unit
  • Synchronous Operation: Maximum 4 units for 16 channels
  • Sampling frequency: Maximum 10 kHz
  • Compatible Gage Resistance: ¼ bridge 2-wire, 3-wire system: 120 Ω , ½ bridge, Full bridge: 120Ω to 1,000Ω
  • A/D converter resolution: 24-bits
  • Different input adapters available for sensor connection.
  • Comes with DCS-100A data acquisition software
  • *Note that the PCD-400B series cannot connect with the PCD-400A/430A.

Detail

UI-55A Input Adapter

  • One-Touch Type Terminal
  • Suitable for Strain Gage, Strain Gage based Transducer
  • Strain Method: ¼ bridge system (2-wire and 3-wire), ½ bridge system, Full bridge system
  • Number of Input Channels: 4

Strain Measuring Software

PCAS-100A

PCA Stress Measuring Software

Combination with the PCD-400B or PCD-430B, the PCA Stress Measuring Software PCAS-100A is the dedicated software to test stress of PCA.

The PCAS-100A allows a beginner to test a PCA stress, analyze data, and create reports in accordance with IPC/JEDEC-9704A** .

** Evaluation method for PCA using strain gages is regulated by IPC/JEDEC-9704A and it is valid for quality evaluation or failure analysis.

Detail
